Low Viscosity At Room Temperature Potting Glue For Electronic Insulation And Waterproof
Quick Detail:
| Name |
Epoxy Resin AR84 |
Usage |
Electronic |
|
Mixing Ratio |
A: B =2:1 (By weight) | Advantages |
Fine flexibility,good abrasion strength,good yellowing resistance,light color and Low VOC,Chemical resistance |

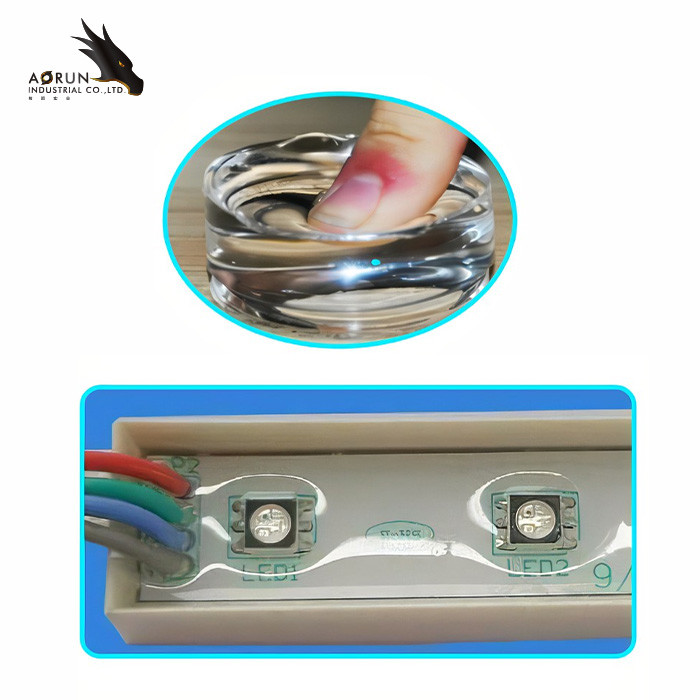

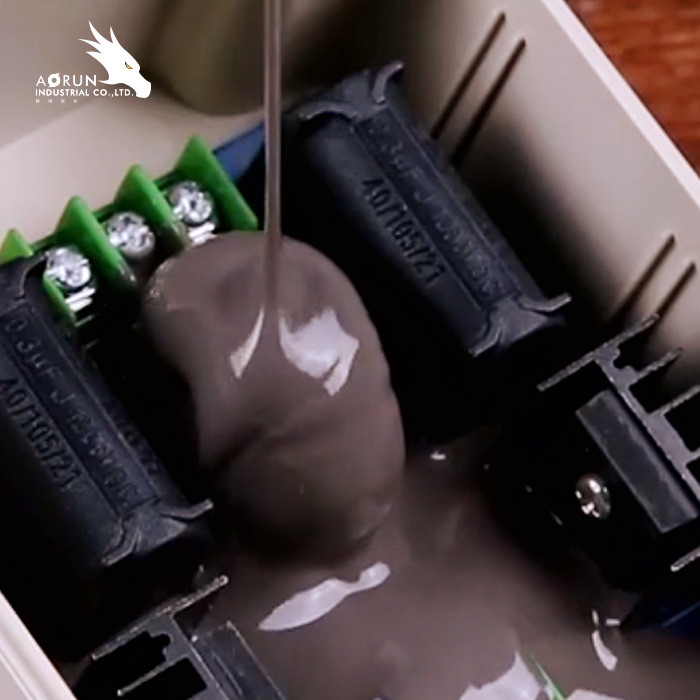

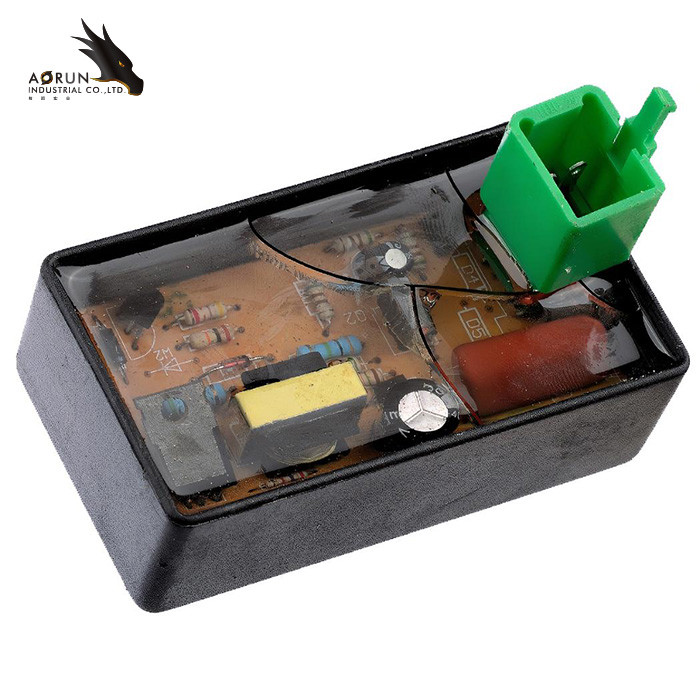

Epoxy resin AR84 A/B is an epoxy resin adhesive that cures under normal and low temperature conditions. It has a high hardness, can be polished, and has a long operating time and a small amount of heat. It can be heated and cured. Dedicated to the padding board surface coating, belt buckle, bar counter, stone surface approved, LED potting, carbon fiber products, drape, polished jewelry surface coating and mold infusion and other electronic parts of the insulation, moisture potting, confidential cover Wait.
Features:
High transparent , low viscosity
High gloss , good flatness
Corrosion resistance
Good solvent resistance , excellent weatherability
Good scratch resistance
No bubble , not brittle
| Items | Units/conditions |
Technical Data
|
| Viscosity | Shore-D | 80-85 |
| Volume resistivity | 25℃/ Ω./ cm | 4.3x1015 |
| Surface resistivity | 25℃/ Ω. | 2.6x1014 |
| Dielectric strength | 25℃ KV/MM | 25 |
| Coefficient of linear expansion | CM/K | <6.1x10-5 |
| Glass transition temperature | ℃ | >90 |
| Temperature resistant | ℃ | -60~120 |
Notice:
1) The silicone materials should be sealed in dry room temperature environment, and the mixed silicone material should be used up as soon as possible, to avoid waste.
2) This product is non-dangerous, having good physiological inertia, no irritation and injury to the skin. The product does not contain inflammable and explosive ingredients and will not cause fire.
3) Do not swallow and keep it from the eyes! If spatter the eyeball please wash with a large amount of water immediately.
4) This product After being stored for some time, the glue will be layered. Please use after mixing completely, without affecting the performance.
FAQ:
1.How about sample policy?
If we have the sample in stock .we will provide free sample to u. if we don't have in stock . then u should pay the sample fee . any way . the sample fee will pay back to u. when u confirm the order
Sample fee is charged by the shippign company . Client should pay it :)
2.Which shipping way is available and how to track?
By sea to your nearest port
By express (DHL,UPS,FEDEX,TNT,EMS)to your door
When ur order shipping out . we will provide u a tracking no. then u can know clearly the status of the goods
3:My package has missing products. What do I do?
A: Please contact our support team and we will confirm your order with the package contents. We apologize for any inconveniences!
4.Which payment way is workable?
Western Union,L/C,Paypel
T/T (30%deposit, 70% before shipment after presentation of ready cargo)
